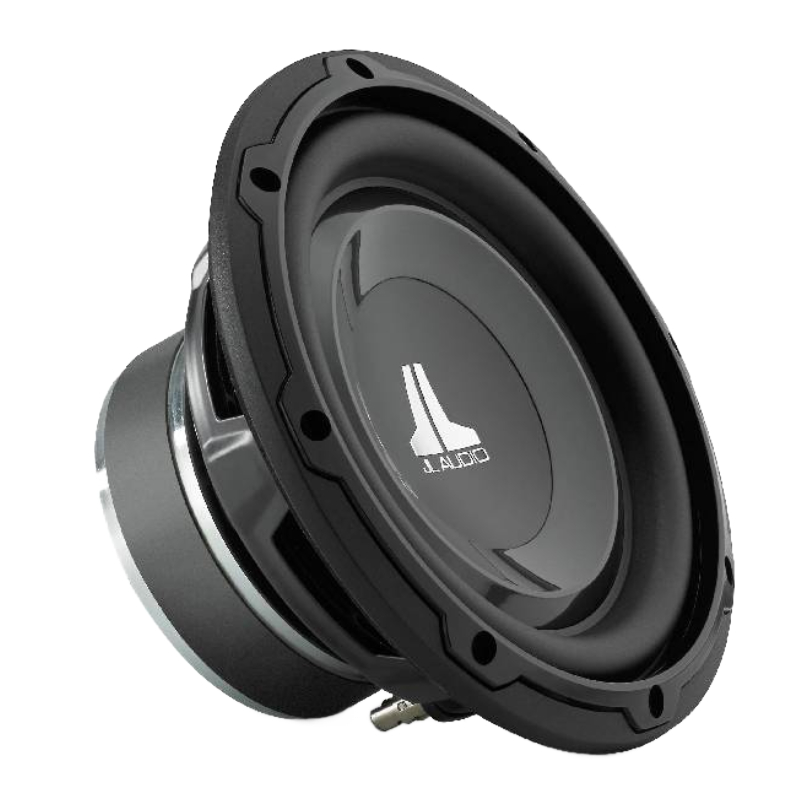

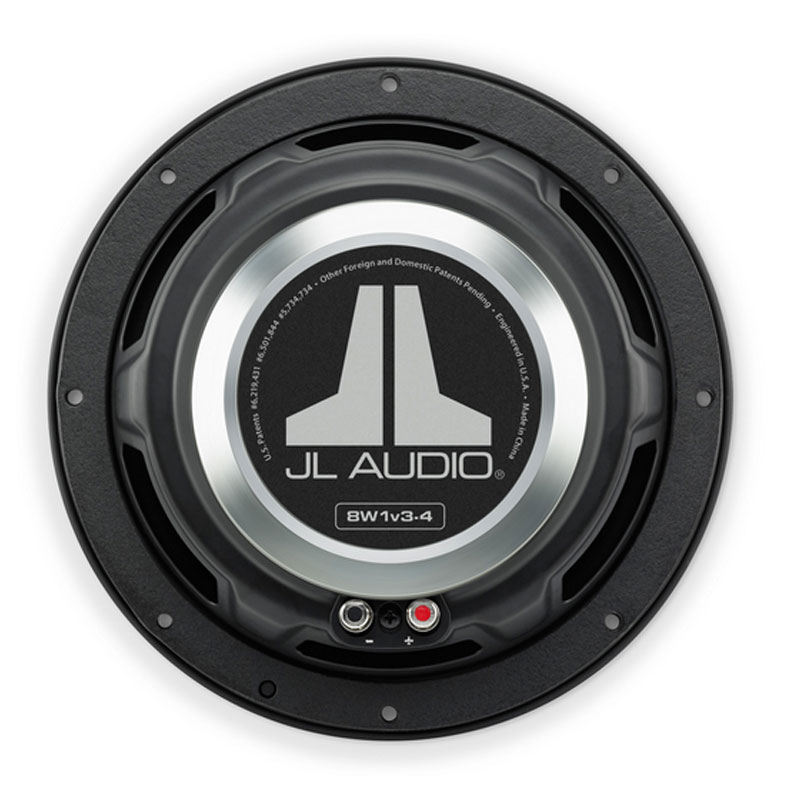

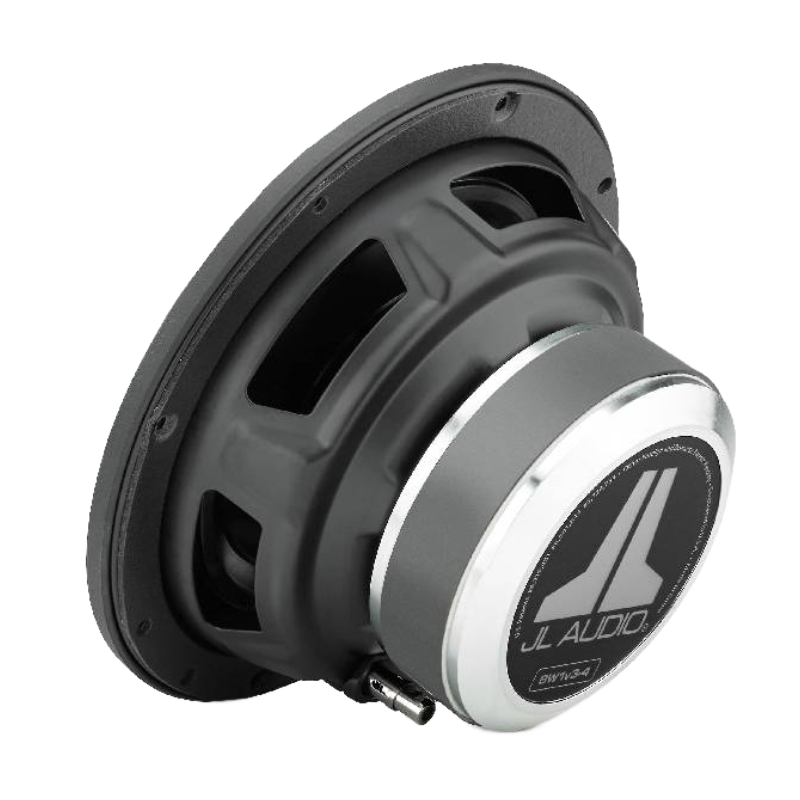

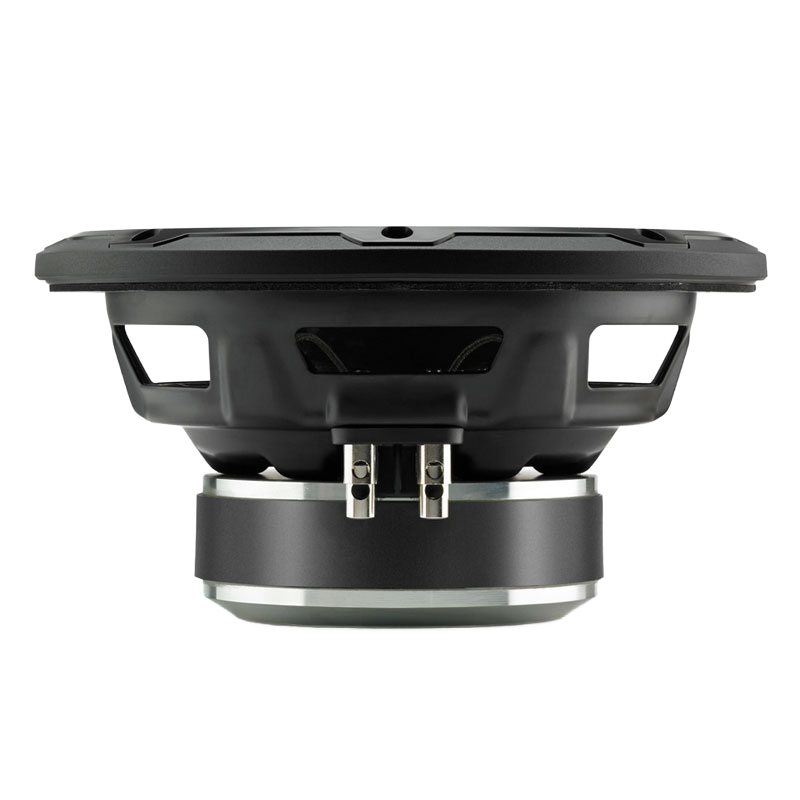

JL Audio 8W1v3-4 W1 v3 Series 8" 300W Peak Power Handling at 4 Ohms, Single Voice Coil Component Car Subwoofer
We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • (1) 8" Single 4-ohm voice coil subwoofer
- • Black plastic trim ring (installed)
- • Owner's Manual
Why Choose JL Audio 8W1v3-4 Component Car Subwoofer?
Powerful Bass in Compact Spaces
The JL Audio 8W1v3-4 8-inch subwoofer delivers deep, accurate bass in compact vehicles where installation space is limited. Featuring W7-inspired engineering, a precision motor system, and an optimized suspension, this 4-ohm single voice coil subwoofer produces clean, powerful low frequencies in small sealed or ported enclosures.
Clean, Accurate Low-End Performance
Built with a DMA-optimized motor, mineral-filled polypropylene cone, rubber surround, and aluminum dust cap, the JL Audio 8W1v3-4 delivers tight, distortion-free bass with excellent sound quality. It's an ideal car audio subwoofer for daily drivers seeking balanced output and musical accuracy.
Easy Installation & Custom Fit
With a shallow 3-7/8-inch mounting depth and a recommended 0.35 cu. ft. sealed enclosure, the JL Audio 8W1v3-4 fits trucks, sports cars, and compact vehicles with ease. Compatible with 50–100 watts RMS amplifiers, it offers flexible installation, custom trim ring options, and legendary JL Audio performance in a compact design.
JL Audio 8W7AE-3 vs 8W3v3-4 vs 8W1v3-4 | Which 8" JL Audio Subwoofer Is Best?
| JL Audio 8" Subwoofer Performance Battle |
JL Audio 8W7AE-3
8" W7AE Series Single 3-Ohm Flagship Subwoofer
BEST PERFORMANCE
- • 8" Subwoofer
- • 500 Watts RMS
- • Single 3-Ohm Voice Coil
- • Massive 19mm Xmax
- • Reference Sound Quality
- • Deepest Bass Extension
- • Highest Output Capability
- • Ideal for Premium SQL Systems
|
JL Audio 8W3v3-4
8" W3v3 Series Single 4-Ohm High-Performance Subwoofer
BEST VALUE SQL
- • 8" Subwoofer
- • 250 Watts RMS
- • Single 4-Ohm Voice Coil
- • Excellent Sound Quality
- • Compact Enclosure Friendly
- • Strong Low-End Performance
- • Great SQL Balance
- • Excellent Daily Driver
|
JL Audio 8W1v3-4
8" W1v3 Series Single 4-Ohm Sound Quality Subwoofer
BUDGET PICK
- • 8" Subwoofer
- • 150 Watts RMS
- • Single 4-Ohm Voice Coil
- • Affordable JL Audio Option
- • Clean & Musical Bass
- • Easy to Power
- • Compact Sealed Box Friendly
- • Perfect for Factory Upgrades
|
Series Breakdown
ENTRY LEVEL
8W1v3-4
Best For:
Factory radio upgrades, compact enclosures, and moderate power systems.
Pros
- Affordable
- Highest sensitivity
- Shallow mounting depth
- Excellent sound quality for its price
- Easy to power
Cons
- Limited excursion
- Less low-end output
- Not designed for high SPL
BEST VALUE
8W3v3-4
Best For:
Daily drivers wanting stronger bass without sacrificing sound quality.
Pros
- Nearly doubles the output capability of the W1
- Noticeably deeper bass
- Excellent balance of SQ & SPL
- Compact enclosure requirements
- Outstanding value
Cons
- Requires more amplifier power
- Slightly deeper mounting depth
FLAGSHIP
8W7AE-3
Best For:
Audiophiles and enthusiasts seeking reference-level bass performance.
Pros
- Massive 19 mm Xmax
- Extremely deep and controlled bass
- Outstanding transient response
- Handles twice the power of the W3
- One of the best-performing 8-inch subwoofers available
Cons
- Premium price
- Requires a larger enclosure
- Deep mounting depth
- Needs a powerful amplifier
Which One Should You Buy?
| If You Want... | Recommended Model |
| Best Budget 8" Subwoofer |
8W1v3-4 |
| Best Value Overall |
8W3v3-4 |
| Best Sound Quality |
8W7AE-3 |
| Deepest Bass |
8W7AE-3 |
| Highest Output |
8W7AE-3 |
| Easiest Installation |
8W1v3-4 |
| Best Daily-Driver Performance |
8W3v3-4 |
Overall Ranking
ENTRY LEVEL
8W1v3-4
Great entry-level performer with clean, musical bass for factory upgrades and compact systems.
BEST VALUE
8W3v3-4
The sweet spot of the lineup, offering the best balance of price, output, and sound quality.
FLAGSHIP
8W7AE-3
JL Audio's flagship 8-inch subwoofer with reference-level sound quality, exceptional excursion, and the deepest bass performance.
JL Audio 8W1v3-4 Recommended Amplifiers | Best Monoblock Amp Pairing for Clean, Musical Bass Performance
JL Audio 8W1v3-4 Amplifier Matching Guide
Best Monoblock Amplifiers for Clean Power Delivery, Tight Bass Response & Reliable Daily Performance
Amplifier Matching Overview
8W1v3-4 Power Rating: 150 Watts RMS
Voice Coil Configuration: Single 4-Ohm
Ideal Amp Range: 100W – 150W RMS @ 4Ω
Goal: Tight, musical bass with clean output and low distortion.
Best Setup: Compact Class-D monoblock amplifier with clean headroom.
Top Recommended Amplifiers for JL Audio 8W1v3-4
JL Audio JD250/1: Best overall match with 150W RMS at 4Ω, providing the ideal power for maximum sound quality and reliability.
Alpine S2-A60M: Great upgrade option with additional headroom when gain is properly adjusted.
Kicker CXA400.1: Compact Class-D amplifier that delivers clean power and excellent efficiency for smaller vehicles.
Gain & Tuning Recommendations
Gain Setting: Match amplifier output to approximately 150W RMS using a multimeter, oscilloscope, or distortion detector.
Low-Pass Filter (LPF): 80Hz for smooth bass integration.
Subsonic Filter: 25–30Hz for ported enclosures; OFF for sealed enclosures.
Bass Boost: OFF for the cleanest bass response.
Phase Adjustment: Set to the position that provides the strongest bass at the listening position.
EQ: Begin with a flat EQ and make minor adjustments only if necessary.
Enclosure Matching Tips
Sealed Box: Delivers the tightest, most accurate bass and the best sound quality.
Ported Box: Produces greater low-frequency output and increased overall bass impact.
Power Recommendation: The 8W1v3-4 performs best with a clean 100–150W RMS signal at 4Ω.
Pro Tip: The JL Audio 8W1v3-4 is engineered for compact systems where sound quality is the priority. Pairing it with a clean 150W RMS monoblock amplifier in a properly sized sealed enclosure delivers the best balance of musical accuracy, low distortion, and long-term reliability.
Frequently Asked Questions (FAQ)
- • Why does my digital multimeter read 3.6 Ohms instead of 4 Ohms on the 8W1v3-4?
Your driver is completely healthy. The 4-Ohm rating represents nominal AC impedance under an active musical load. Standard handheld meters measure direct current resistance (Re), which naturally rests right around **3.59 Ohms** for this model.
- • Can I wire a single 8W1v3-4 down to a 2-Ohm load to get more power from my amp?
No. This is a Single Voice Coil (SVC) 4-Ohm driver. Because it only possesses one set of input terminals, its physical impedance cannot be modified. To achieve a 2-Ohm load at your amplifier, you must wire a matching pair of 8W1v3-4 subwoofers in parallel.
- • Why does my 8W1v3-4 make a sharp popping or clacking noise on deep bass notes?
The voice coil is physically bottoming out against the backplate. As an entry-level driver, it has a limited **7.6mm linear excursion (Xmax)**. Forcing low sub-bass notes under 35Hz into it without an active subsonic filter will cause the cone to overshoot.
- • Is it safe to mount this subwoofer completely flush against the solid back wall of a shallow enclosure?
Yes. The W1v3 series features a proprietary design with a **solid pole piece and no rear vent hole**. Because the motor structure vents entirely through the frame basket sides rather than the back of the magnet, you can mount it flat against the rear wood panel.
- • What is the maximum safe continuous power handling limit for a single 8W1v3-4?
The absolute thermal ceiling is exactly **150 watts RMS**. Powering it with a typical 300W–500W mono amplifier without manually backing down the gain control with a multimeter will rapidly overheat the small voice coil and burn it out.
- • Why does the bass output sound incredibly weak, thin, and completely hollow?
The enclosure is likely too large or leaking air. This driver relies heavily on tight back-pressure air suspension to control its compliance. It requires an ultra-compact, precise net internal volume of exactly **0.35 cubic feet for sealed enclosures**.
- • Can I drop this subwoofer into my car's factory rear deck or door speaker locations?
Generally no. Most factory sound systems utilize 2-Ohm components and open-air infinite baffle layouts. Running this 4-Ohm enclosed driver without a dedicated box removes vital air damping, cutting output in half while causing immediate mechanical distortion.
JL Audio 8W1v3-4 Videos & Reviews
← Swipe left or right to browse videos →
Learn How To Wire Subwoofers
- Diameter : 8 Inch
- Sensitivity : 84 dB
- Impedance : 4 Ohm
- Frequency Response : 25-250 Hz
- Peak Power Handling : 300 Watts
- Shallow Mount : Yes Inch
- Number of Voice Coils : Single
- Suggested Sealed Box Volume : 0.35 Cubic ft.
- Suggested Ported Box Volume : 0.5 Cubic ft.
- RMS Power Handling : 150 Watts
Features:
- Legendary JL Audio Engineering: The 8W1v3-4 subwoofer brings JL Audio’s renowned performance to tight spaces where traditional subs cannot fit, giving you powerful bass in compact vehicles.
- Trickle-Down Technology: Incorporates patented features from the legendary W7 series, including advanced cone bonding, motor assembly precision, and sophisticated suspension systems for linear, dependable output.
- Engineered for Performance: Provides impressive output, accuracy, and sound quality at moderate power levels, ideal for small enclosures in trucks, sports cars, or compact vehicles.
- Dynamic Motor Analysis (DMA) Optimized Speakers: Ensures linear motor force across a wide range of excursions and power levels, delivering tight, clean, and articulate bass with minimal distortion.
- Polypropylene Cone Technology: Mica-filled polypropylene cone with a durable rubber surround and aluminum dust cap delivers crisp, strong bass while standing out visually with an embossed JL Audio logo.
- Shallow Mounting Depths: At only 3-7/8 inches deep, the sub fits into compact environments and works optimally in small enclosures starting at just 0.35 cubic feet.
- Custom Accents: The removable trim ring allows for paint customization to match your installation, and optional grille inserts (sold separately) add protection and style.
- Powerfully Adaptable: Compatible with sealed or ported enclosures and amplifiers ranging from 50-100 watts RMS, making it perfect for budget-friendly setups.
- Solid Bass for Compact Boxes: Optimized for small vehicles and hard-to-fit spaces, delivering impressive low-end performance without the bulk of larger subwoofers.
- Affordable and Reliable: Offers JL Audio quality and engineering at an accessible price point, ensuring dependable performance without breaking the bank.
Specifications:
- Size: 8"
- Impedance: 4 Ohms
- Cone Material: Mica-filled polypropylene
- Surround Material: Rubber
- Basket Material: N/A
- Grille: None included
- Free-Air Capability: No
- Dual Voice Coil: No
- Sensitivity: 84.8 dB at 1 watt
- Frequency Response: 25 – 250 Hz
- Max RMS Power Handling: 150 watts
- Peak Power Handling: 300 watts
- Top Mount Depth: 3 7/8 inches
- Cutout Diameter: 6 15/16 inches
- Frame Width/Length: 8.533 inches
- Vas (liters): 19.26
- Fs (Hz): 35.4
- Qts: 0.418
- Xmax (mm): 8
- Ideal Sealed Box Volume: 0.35 cubic feet
- Ideal Ported Box Volume: 0.5 cubic feet
- Minimum Ported Box Volume: 0.4 cubic feet
- Maximum Ported Box Volume: 0.65 cubic feet
- Port Diameter: 2 inches
- Port Length: 10 inches
- UPC: 699440920797
- Weight: 10
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
Do you own this product?
Write a review!
-
this 8" sub is like a party in my car, way better than any of them other ones. it jams with my highs and mids, you'd never guess it's just a little 8". hooked it up with a JL amp, and bam, this mini sub sounds crazy good.
-
I swapped out the old sub in my truck with this JL, and WOW. The difference was unbelievable. It's deep, clean, and full.
-
Amazing subwoofer! Maaan! Should have upgraded sooner.
